Spesifikasi

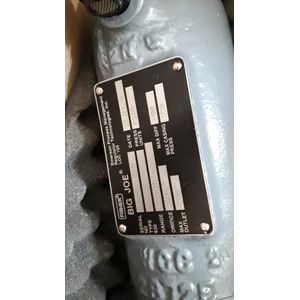

Pressure Relief Valve
Features
High-Pressure Capabilities
Rugged Construction
Better Low-Pressure Control
Sour Gas Service Capability
Specifications
Body Size and End Connection Styles NPS 1 and 2 / DN 25 and 50 with an end connection of NPT, ASME CL150 RF, CL300 RF, or CL600 RF
Maximum Inlet Pressure 1500 psig / 103 bar
Maximum Outlet Pressure Up to 500 psig / 34.5 bar
Outlet Pressure Range 3 to 500 psig / 0.21 to 34.5 bar in 10 ranges
Pressure Registration Internal
Temperature Capabilities Nitrile (NBR), Nylon (PA), and Neoprene (CR): -20 to 180°F / -29 to 82°C
Fluorocarbon (FKM) and Perfluoroelastomer (PTFE): 0 to 300°F / -18 to 149°C
Approximate Weights 1-inch End Connection: 25 Pounds / 11.3 kg
2-inch End Connection: 30 Pounds / 13.6 kg
